OPERATED BY: TUPRAS Rafinerileri IZMIT A.S.
ADDRESS: TUPRAS Rafinerileri mudurlugu Korfez 41790 Kocaeli , Turkey
TELEPHONE: (262) 527 06 60
FAX: (262) 527 47 14
LOCATION: 40° 44' 54" N, 29° 46' 54" E
MAIN ACTIVITY: In order to meet the country's petroleum products demand Procurement and processing of crude
oil Export and import of all kinds of petroleum products Establishment, purchase, take over, operation and expansion
of petroleum refineries with auxiliary facilities Handling crude oil and refined petrol product. The refinery capacity
reached to11.5 millions tons/year with completion of debottlenecking and expansion projects. The refinery has three
crude and three vacuum distillation units, two unifiner / reformer units, two FCC units, one sulphur recovery unit,
one isopentane unit, one naphtha sweetening unit and related utility units. Crude oil and intermediate product
processing capacities of Izmit Refinery in Turkiye, are given 40.000 m3/day Crude Units , 14.300 m3/day Vacuum
Units, 2.200 m3/day FCC Unit ,3.250 m3/day Reformer Unit, 8.600 m3/day Desulphurizer Units (Sulphur Removal) ,
3.650 m3/day Hydrocraker Unit ,3.000 m3/day Visbreaker Unit
ANCHORAGE AREAS: please see "Gulf of Izmit" (Information on best location of anchorage will be
given by Pilot station). 1,5 miles N.W. of the terminnal.
PILOTAGE: is compulsory for vessels entering or leaving the ports and through the Izmit Gulf. Call Dekas
Pilot on VHF channels 12, 16 three hours before arrival at Darica for through the port. Pilot Boarding Point which
is Lat. 40 deg 44' 89" N and Long. 029 deg 22' 66" E.

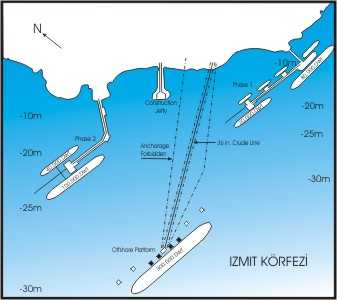

Click for enlarge picture
TOWAGE: and/or mooring boat compulsory arranged by pilot and provided by the TUPRAS and additional tugs
are used by the Med-Marine.
BERTHING: Tankers should ask for the berthing time and act according to instructions given by the port.

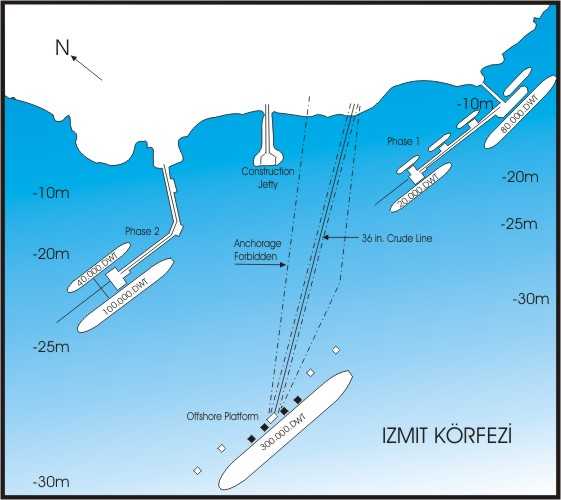

There are One Crude Platform (Max. Vessel Size 300,000 DWT), Two Jetties With 8 Berths (Max. Vessel Size 100,000
DWT). All dolphins are fitted with quick release hooks. For LPG carriers 2 berths are used, also refined products
carriers use the same berths. Crude is imported to a Sea Inland for VLCC and to the original old jetty for small
tankers. The original jetty is at the Southern corner of the refinery at Kilier Bar. A new berth has constructed
some 0.5 mile North of old jetty. The new berth is a modern concrete pile construction with a roadway out from
the shore taking the pipes, with the berths leading of at 45 deg. With 4 mooring/fender dolphins to seaward, connected
with a cat-walk. Vessels berth on both sides of this jetty, generally head in. Fender and mooring arrangement is
good. This jetty is used for LPG and refined products. The Sea Island consists of a platform with three dolphins
on each side. There are no connections between the platform and the dolphins. Fendering and mooring arrangements
acceptable for tankers of 150.000 dwt.Vessels normally berthed port-side to at the Sea Island.
CARGO CONNECTION AVRG. RATE BERTH
Crude Oil & LPG 8 x 10" 500-750 Phase 2 / South
Crude Oil & LPG 8 x 10" 500-750 Phase 2 / North
Crude Oil & LPG 4 x 16" 5.000-8.000 mt/h Platform
Crude Oil & LPG 20 x 6"up to 24" 2.500 mt/h (loading rate) Phase 1
GROSS STORAGE CAPACITY: crude oil 920.000 cbm., product 836.000 cbm.. Crude Oil Unloading Capacity 15.0
Million Tons/Year, LPG Unloading Capacity 1.5 Million Tons/Year.
FIRE PRECAUTIONS: Ship's watchmen to be on duty.All operations involving open fires and sparks are prohibited.
NATURE OF SEA BOTTOM: Sand.
DENSITY: 1017
FRESH WATER: available at berths or by barge.
BUNKER: available by barge. (Notice to agent 48 hours required prior to berthing).
AIRPORT: At Istanbul distance apprx. 128 km from the port.
WORKING HOURS: operates 24 hours a day year round,
GARBAGE REMOVAL: collected once a day by service boat of the TUPRAS Refinery Port Control.
WASTE OIL DISPOSAL: service is available to the shore ballast tank. There are 500 m3/day Industrial Waste
Water Treatment Units , 550 m3/day Sewage Water Treatment Unit..
BALLAST: Oil ballast must be pumped ashore to the refinery. There is 750 m3/day ballast water treatment
unit. Vessels shall not discharge into the waters of the port any part of the content of their cargo, slop or ballast
tanks or bilges, which is liable to pollute these waters.
SHORE LEAVE: Crew permitted ashore with shore passes. It is forbidden to wander on jetty and in refinery
area.
OTHER INFORMATION: All information about "Harbour Regulations" and "International Oil Tanker
and Terminal Safety Guide" given to Master after berthing. The main engines of all vessels while at the berth
shall be kept ready for immediate use. Fire Fighting Equipment must be adequately manned for fire-fighting and
vacating the berth in case of an emergency.
|
|
 |
